ADVANCED LEVEL TECHNICAL DRAWING SENIOR SIX PAPER ONE THIS COURSE IS DONE BY ADVANCED LEVEL STUDENTS IN PREPARATIONS FOR THEIR …

FREE

ADVANCED LEVEL TECHNICAL DRAWING SENIOR SIX PAPER ONE

THIS COURSE IS DONE BY ADVANCED LEVEL STUDENTS IN PREPARATIONS FOR THEIR FINAL EXAMS. This starts in senior five up to six.

Course Currilcum

  • TD6/1: TRACES Details 1 year

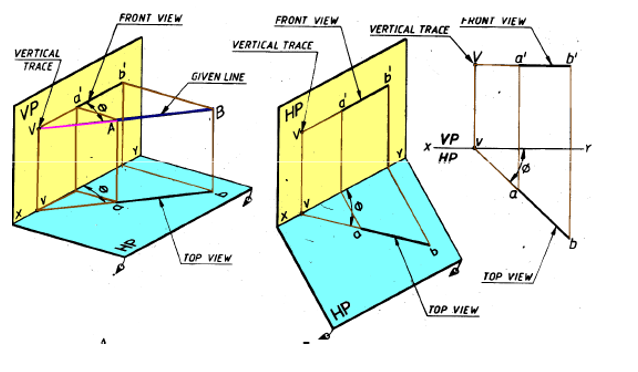

  • TRACES. The trace of a line is defined as a point at which the given line, if produced, meets or intersects a plane. • When a line meets HP, (or if necessary on the extended portion-of HP), the point at which the line meets or intersects the horizontal plane, is called horizontal trace (HT)of the line and denoted by the letter H.
  • TD6/1: ISOMETRIC PROJECTIONS AND AUXILIARY PROJECTION Details 1 year
  • Auxiliary views, as their name implies, offer an added viewpoint of an object. In this way we are not limited to three viewpoints (front, end and plan) but we can now construct additional auxiliary elevations and auxiliary plans.
  • TD6/1: ISOMETRIC PROJECTIONS AUXILLIARY PROJECTION ASSIGNEMNT 10, 00:00
  • TD6/1: OBLIQUE PROJECTION Details 1 year
  • This is another method of pictorial drawing. It is simpler than isometric but it does not present so realistic a picture.
